Exfoliation and Lithography



MICROMECHANICAL EXFOLIATION

We use micromechanical exfoliation for synthesis of graphene as well as other 2D crystals (BN, MICA). We have several years of experience with micromechanical exfoliation. Our typical graphene (single layer) samples are several tens of micrometers long, with some samples being over several hundred micrometers long. Our samples are pristine, this we confirm by Raman and AFM measurements (see: Specrtoscopy link, SPM link).

We have existing collaboration with many research groups that use our samples for their experiments, and we are always open for new collaborations.

exfoliation

graphene

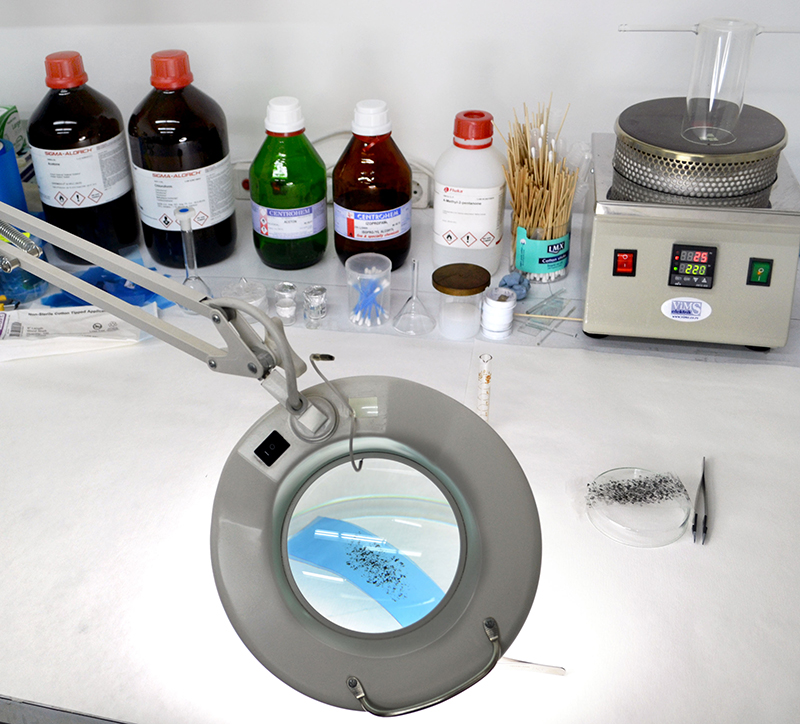

Schematic representation of the exfoliation process

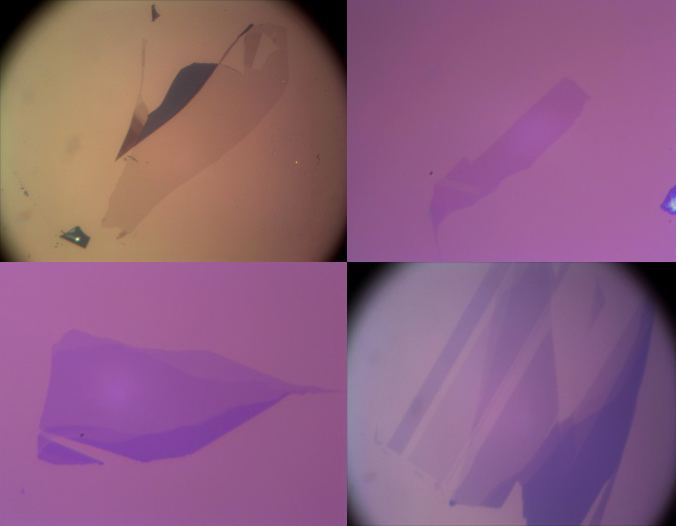

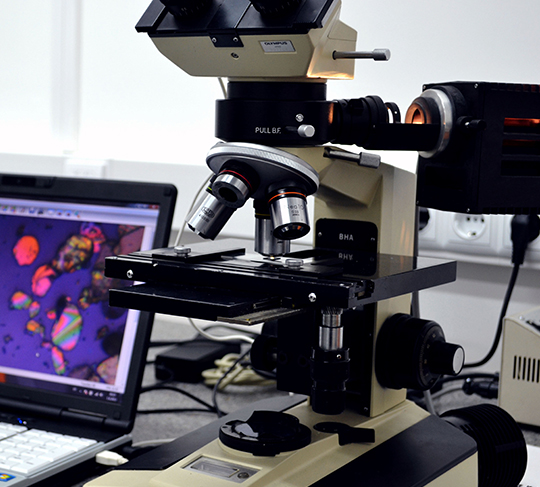

Microscope images of graphene flakes (single-, bi- and tri-layer samples).

UV PHOTOLITHOGRAPHY

Using a spin-coater, Karl Suss MJB3 mask aligner and a home built PVD system (more details in: equipment link) we are capable of making several contact geometries (usually in a two or four point probe configuration) as well as patterning

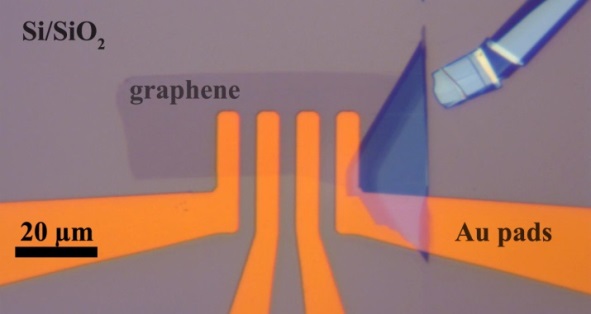

Microscope image of a graphene sample with gold contacts in a four point probe configuration

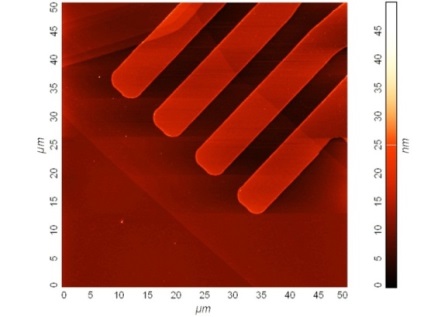

AFM image of the same sample, confirming no contamination from the lithography process

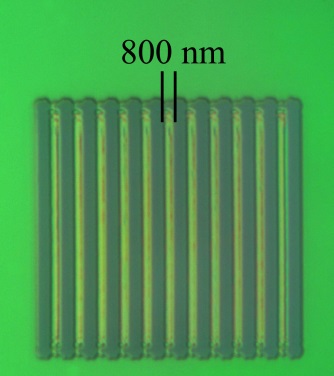

Pattern for etching graphene into ribbons (microscope image viewed through photoresist)

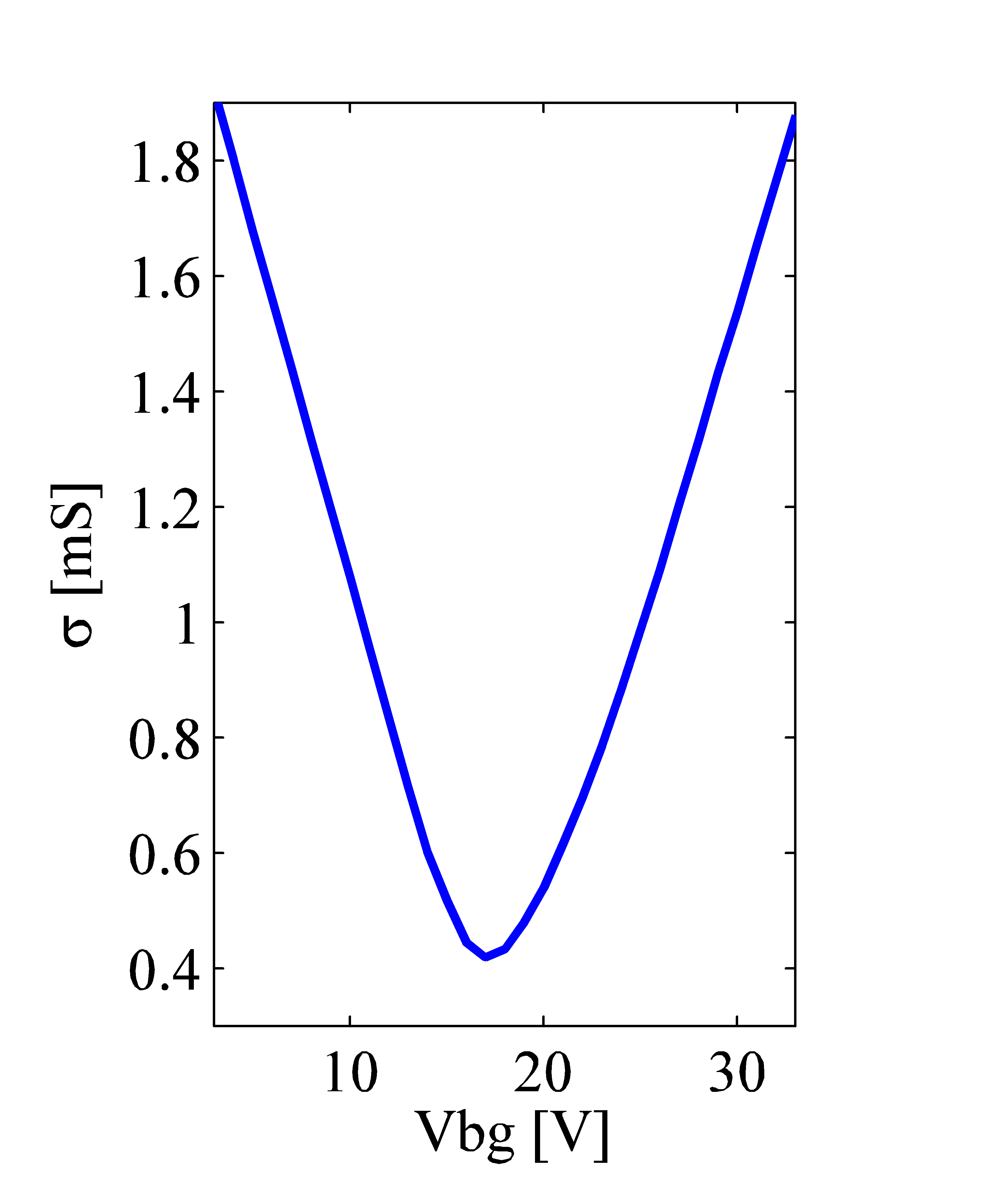

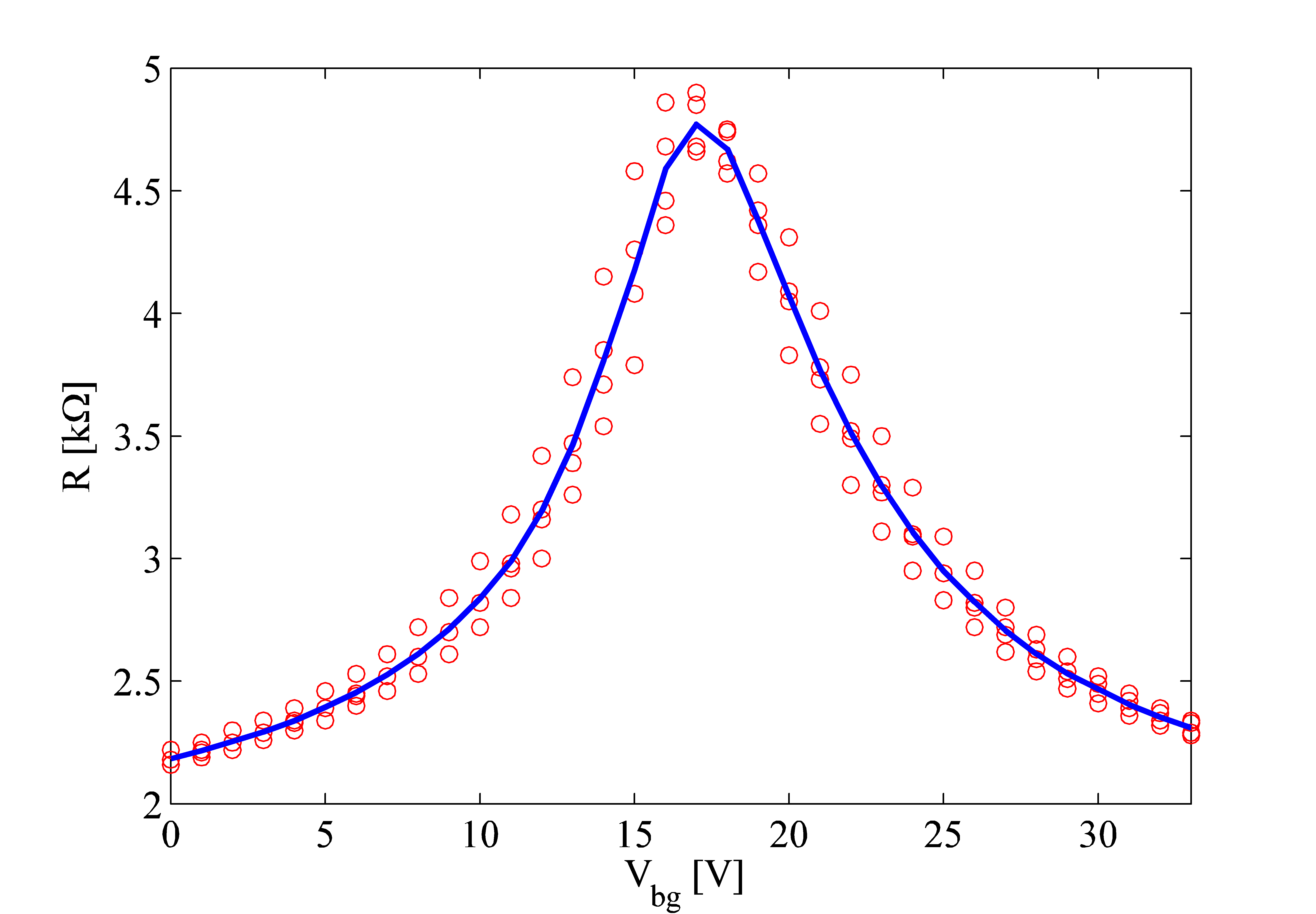

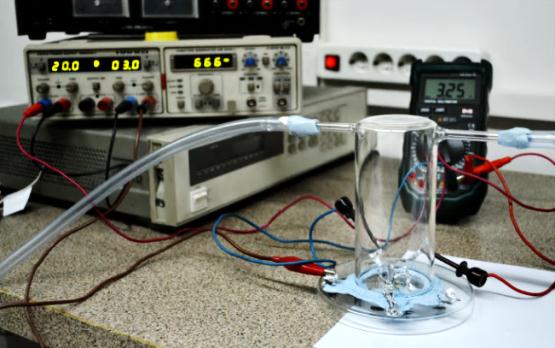

We measure sample resistivity in a DC mode and in a back-gate configuration. Samples are either in Ar environment, or encapsulated with pmma or made on HMDS treated substrates.

Microscope image of a graphene sample with gold contacts in a four point probe configuration

AFM image of the same sample, confirming no contamination from the lithography process

Pattern for etching graphene into ribbons (microscope image viewed through photoresist)
